CT Live Controller Dashboard

Introduction

The Controller Dashboard in CT Live 2.0 grants you access to an overview of controllers you have connected to the CCS Server. From the main page of the dashboard you can find power status, antenna status, event, point, and server status.

To find the Controller Dashboard, you will need to be in CT Live 2.0. Click the "My Orgs" banner in the top of the screen from and choose the option titled "My Controllers."

Overview

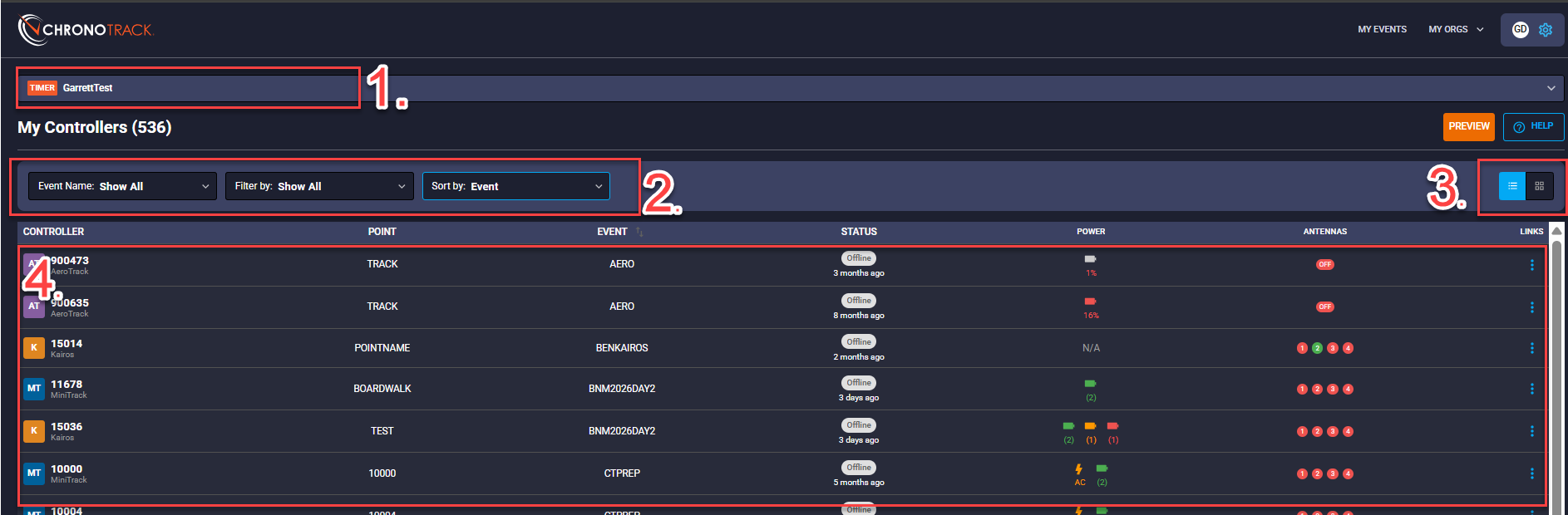

You will find the following on this main page:

1. Organization Selection
2. Controller Filters
3. Form Factor Sort
4. Controller View

Organization Selection

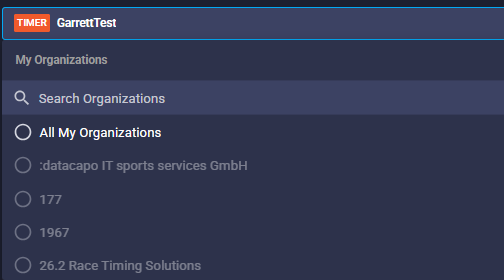

 This gives you the ability to filter the controllers that show below to a specific timer org you have access to if you have access to more than one.

Controller Filters

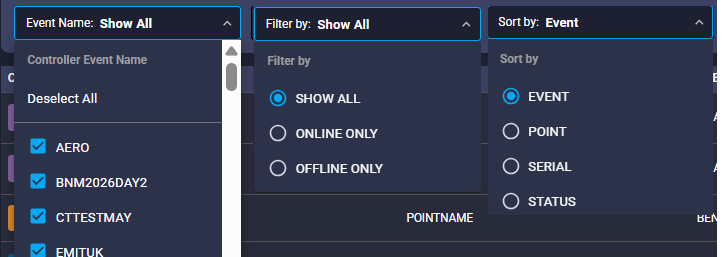

Filter the below controllers that will show by a couple of different things. Firstly, you can filter by Event Names available for your equipment on the server. Secondly you can filter by Online/ Offline Status, or Show All controllers. Lastly you can filter the sort for the order of how controllers appear on the page. The selection for these is by Event, Point, Serial, or Status.

Form Factor Sort

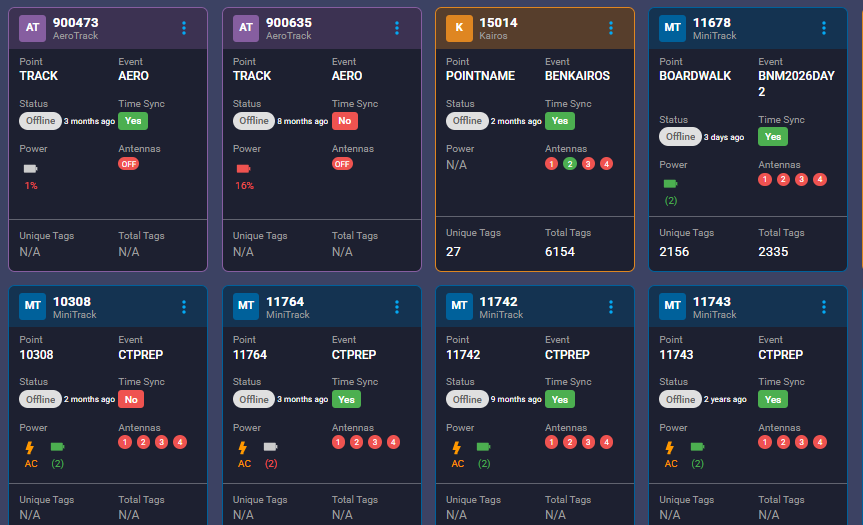

You can also filter to show controllers in a list view on the page, or in there own "box" windows.

Controller View

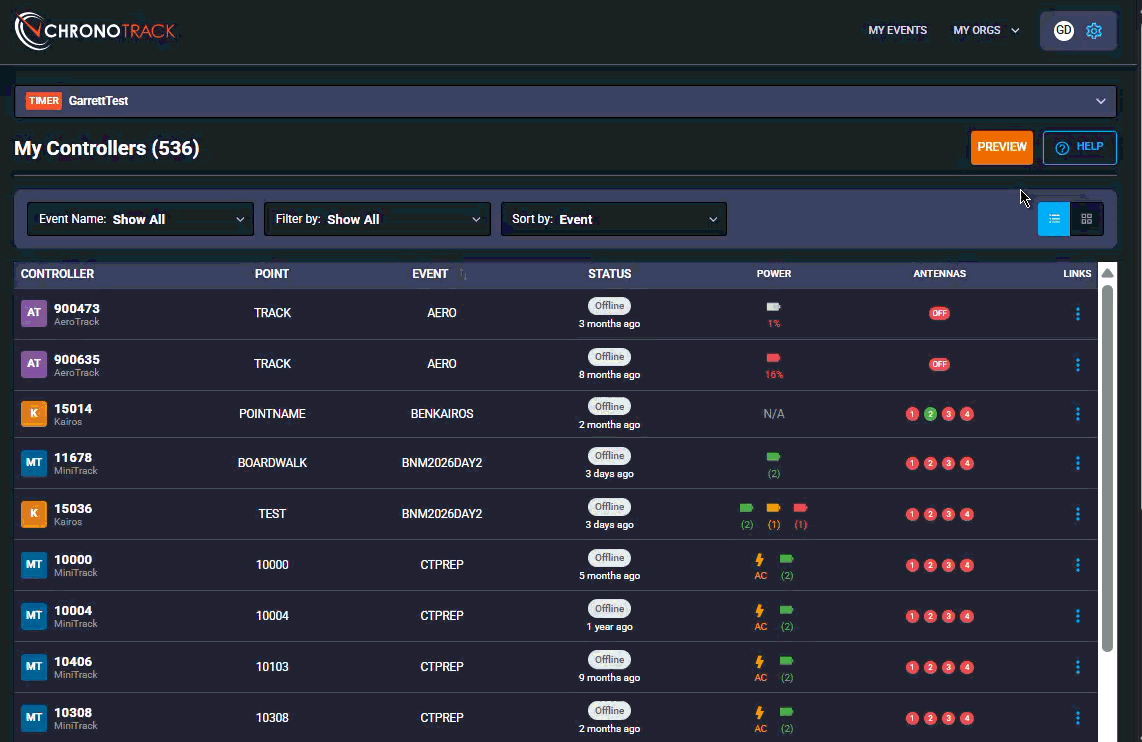

This is basically the "search results" for the above statuses, filters, and organization(s) chosen.

This view shows you each controller with the following attributes: power status, antenna status, event, point, and server status.

Detail Menu

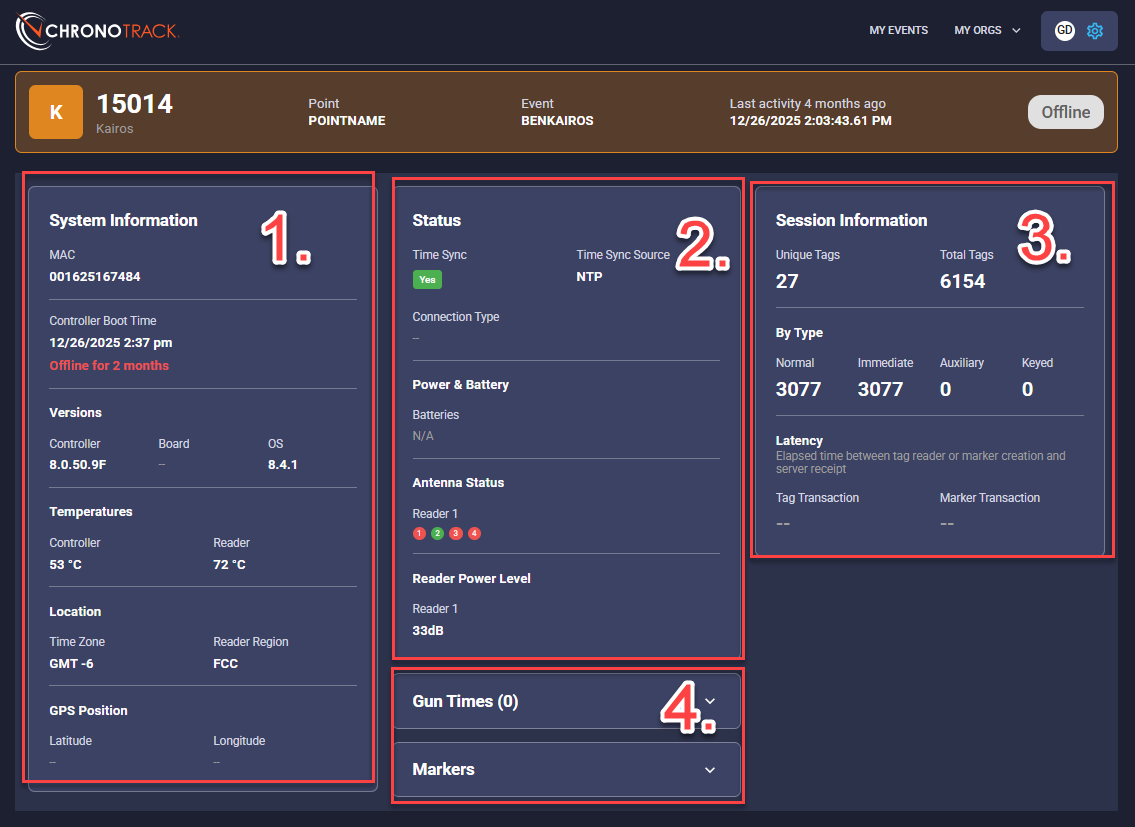

If you click on a controller from the previous controller view, it will bring up a more detailed page for that specific controller that will give you the information found on the main controller view page in addition to some other details.

1. System Information - shows you Mac Address,  last boot time for controller on server, versions for hardware and software reported, temperature, location information, and GPS information.
2. Status - Shows time sync status, source of time sync. server connection type, power and battery status, antenna status, and reader power level.
3. Session Information - If tags were read on the controller in the most recent session, unique and total counts for tags will be shown in addition to a count of the tag count for types of tag reads read.
4. Markers - Gun times reported for controller can be shown in the "gun times" dropdown and the marker file for the controller will display in the "markers" dropdown.
