Introduction
CT Feed is a CT Live tool that can be used for a variety of results display purposes. It is designed to make displaying results flexible and easy. Feed is also intended to be able to replace previous announcer setups in certain cases.
Overview
To get to Feed for your Event, Go to this Link: https://live.chronotrack.com/event/XXXXX/results/feed and replace the XXXXX in the link with your Event ID.

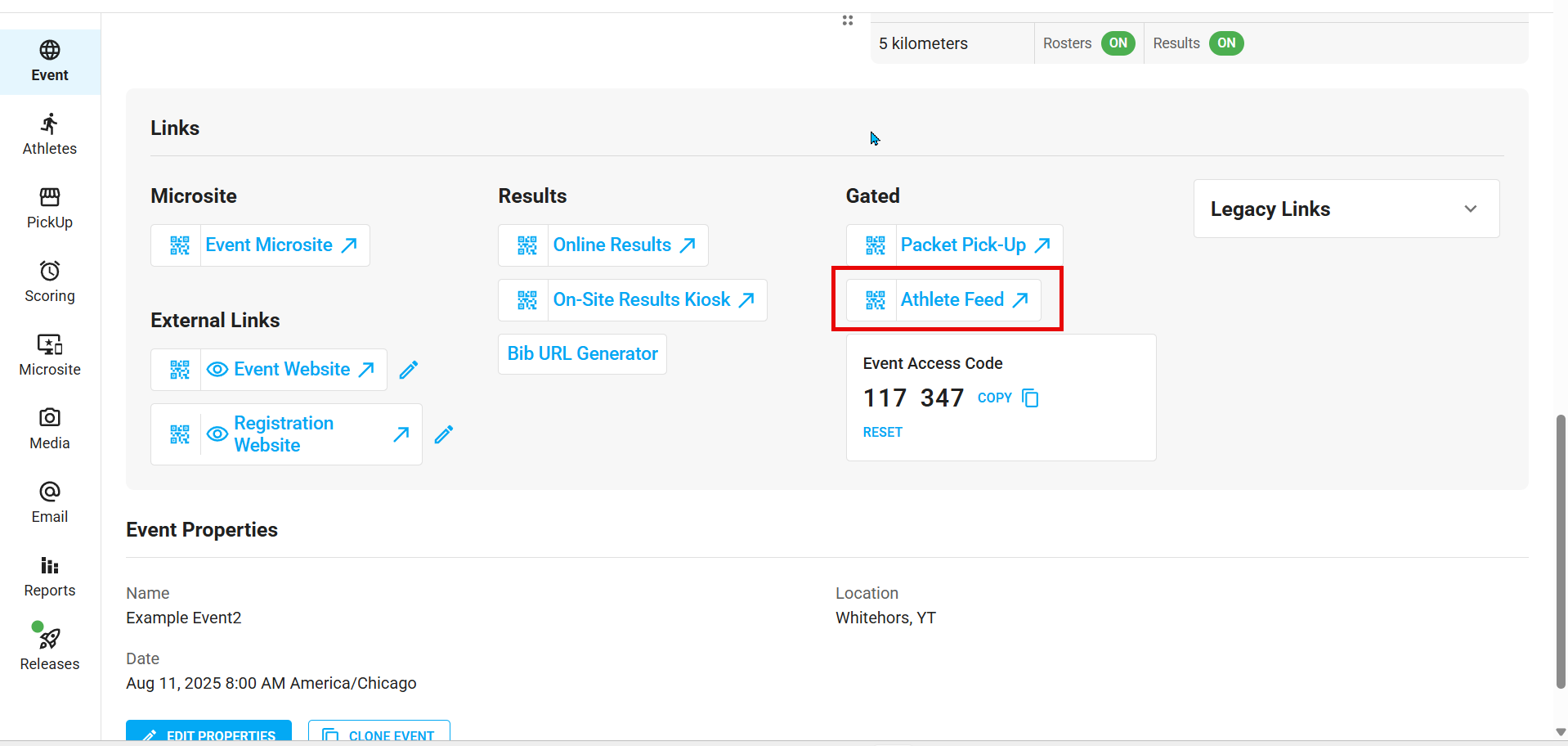

To find the link on your Event, you can also go to the Event Dashboard and click the link there:
By default, with no controller connected, the Feed will show Results as they come into CTL. Once you connect a controller, it will show incoming tag reads from that controller as they correlate to athletes in CT Live.

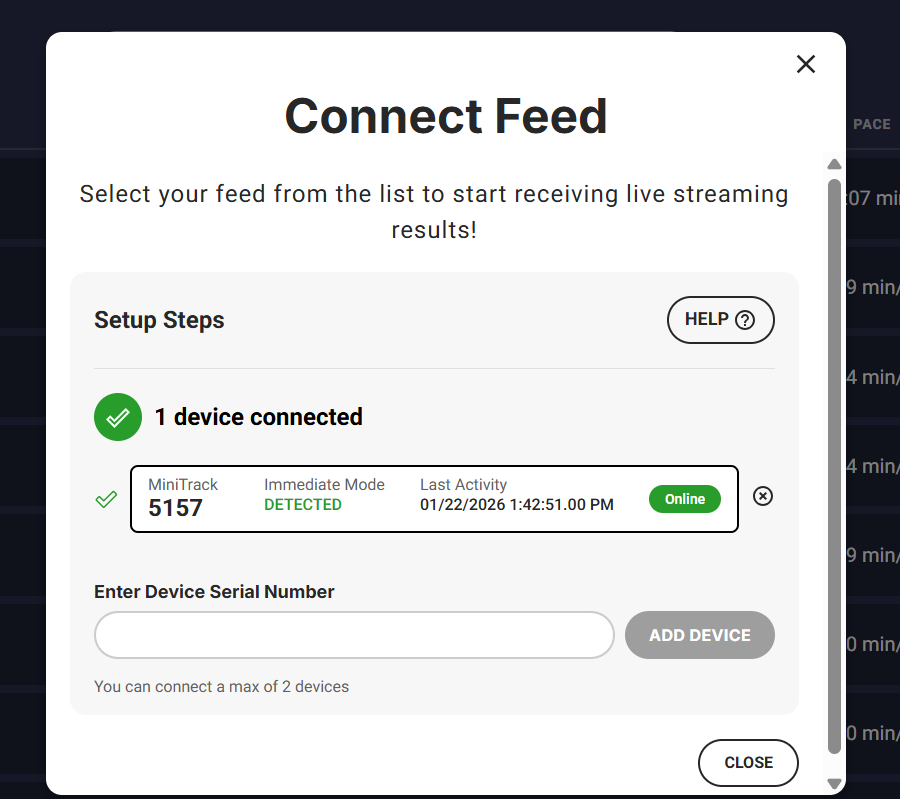

Connecting a Controller
- Connect your controller to the CCS Server
- On the Feed dashboard, click the Settings gear Icon in the top-right of the screen
- Choose Connect Feed
- Search for your controller by Serial Number
- Choose Add Controller. You may add a max of 2 to Feed
-
After controllers are connected, athlete data will populate the Feed as it comes in, if the tag data is associated to athletes in the event

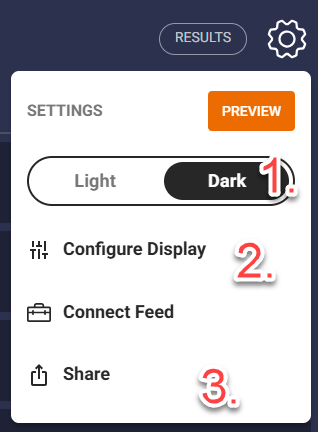

Display Settings

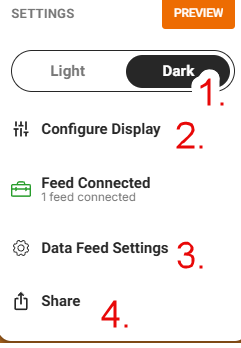

Under Settings once you have connected your controller, there are also some other things to note:
- Light/Dark Mode Toggle - This utilizes the "Primary Color" chosen in Microsite > Branding to apply a darker version of your color scheme. You can edit this color in Feed Settings > Configure Display.
-

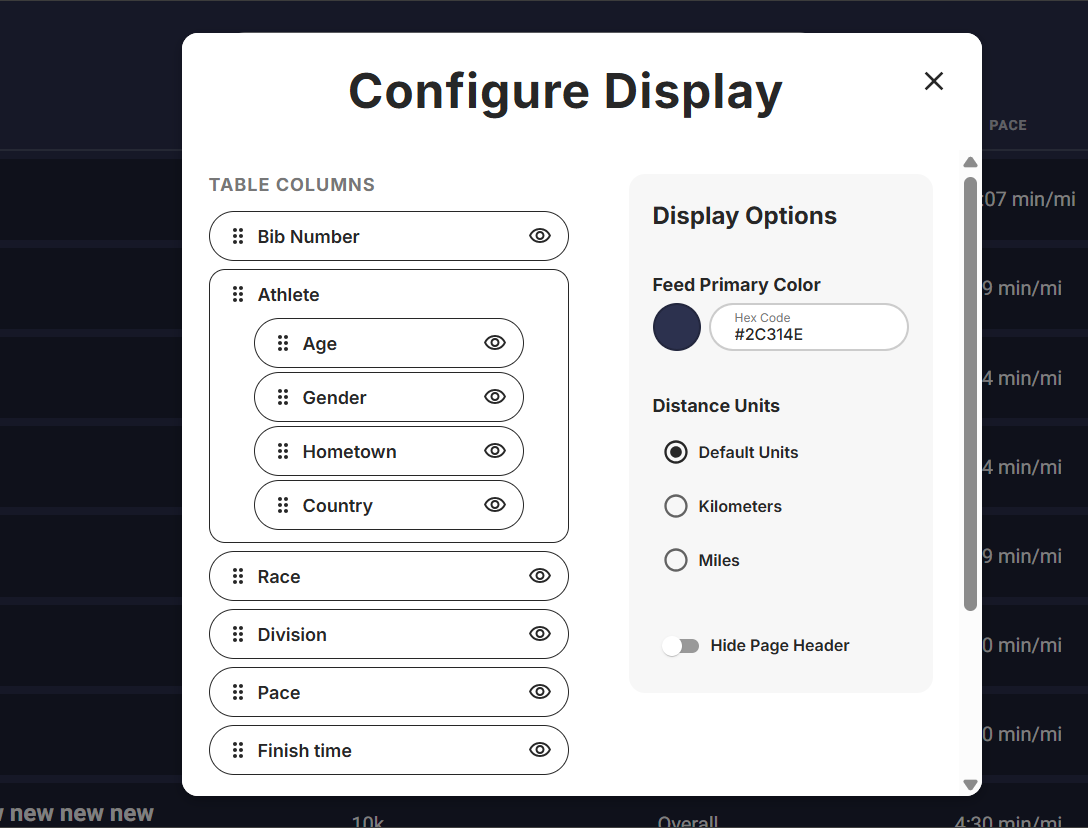

Configure Display - Add or remove fields from the Feed display: Bib, Last Seen, Name, etc. This also allows you to edit primary color of Feed, and toggle between Units of Measurement.

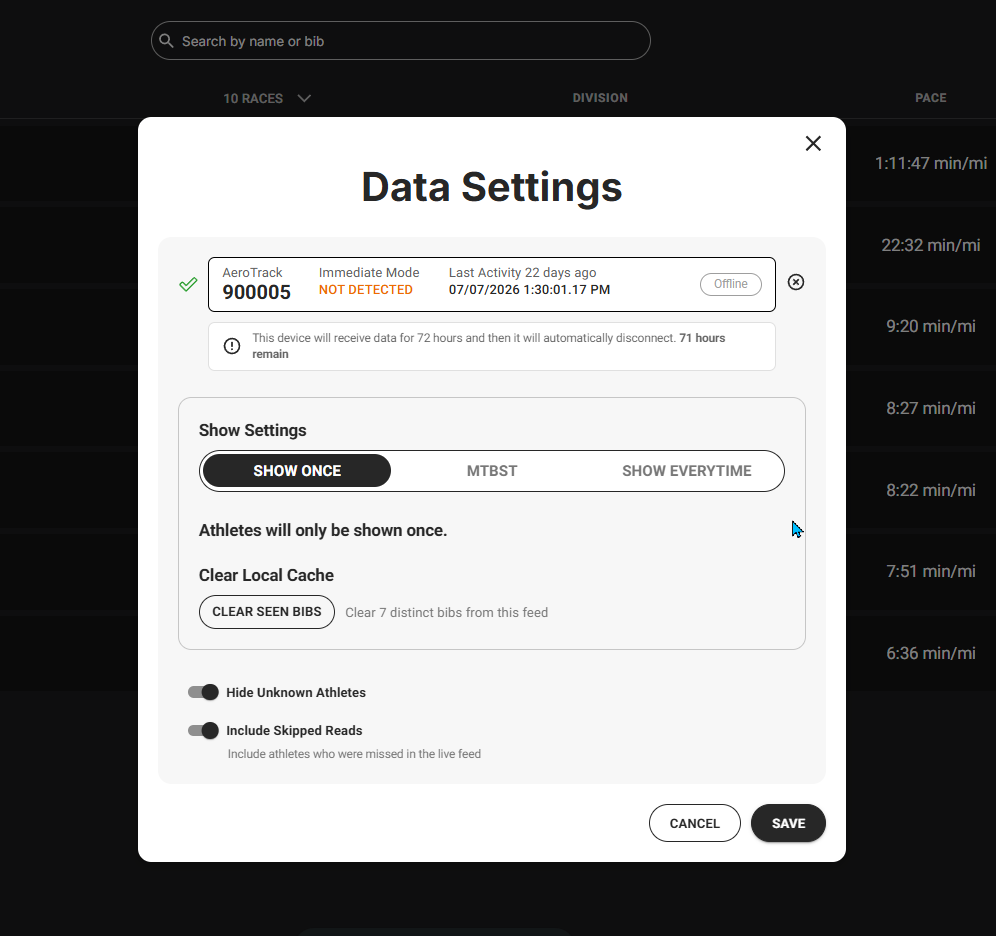

3. Data Feed Settings - Allows you to control how often you want to see an athlete appear on the announcer screen.

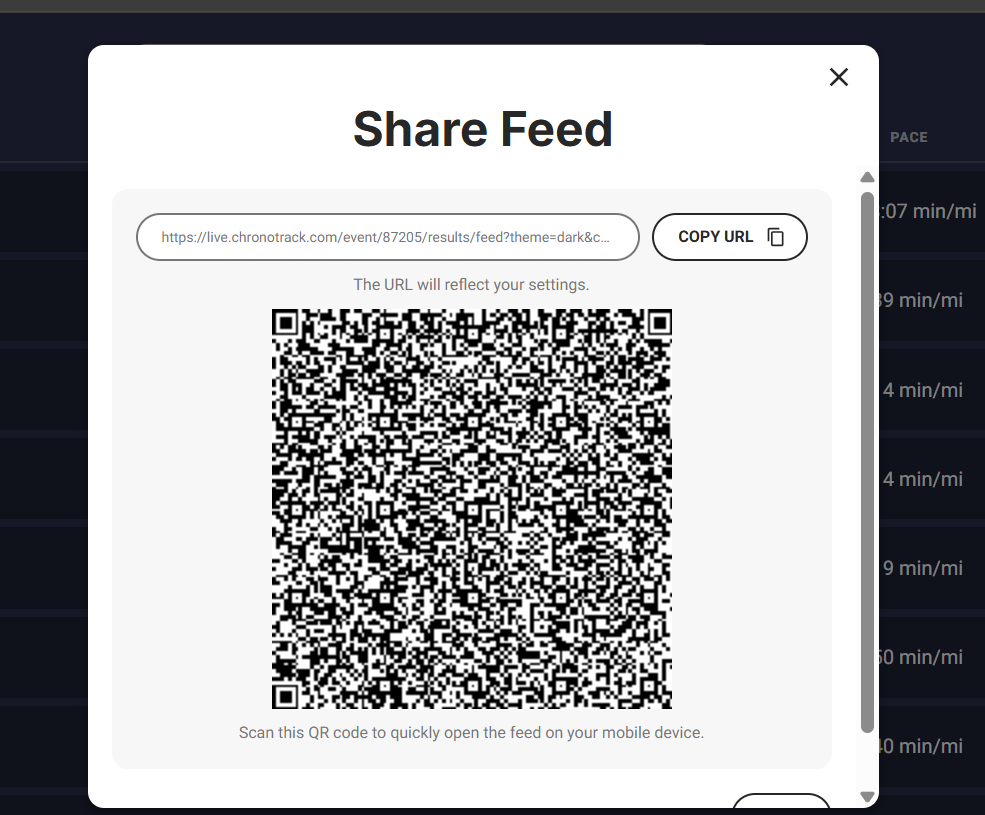

4. Share - Allows you to share the Feed display via link or QR code.
